Subaru Forester: Instruments and controls / Setting screen
Press and hold the INFO button on the guidance screen. The top menu is displayed.
Operate the “
” or “.gif)
”
switch to
select the preferred menu from the top
menu.
Pull the “
” switch to enter the
selected menu.
Operate the “
” or “”
switch to
select the preferred menu from the 2nd
menu.
Pull the “
” switch to enter the
selected menu.

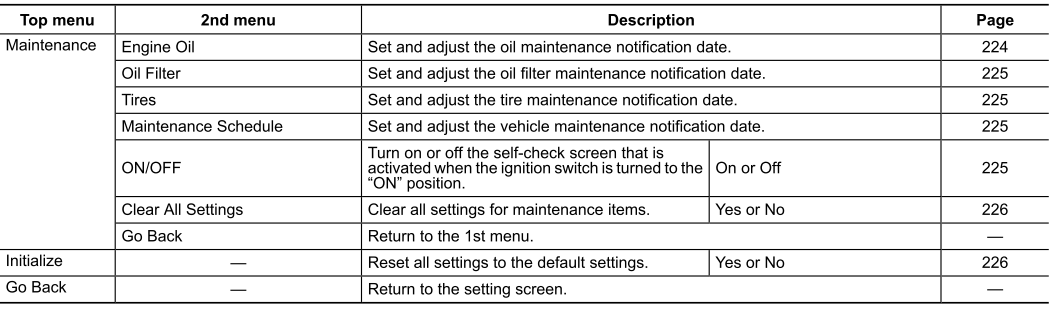

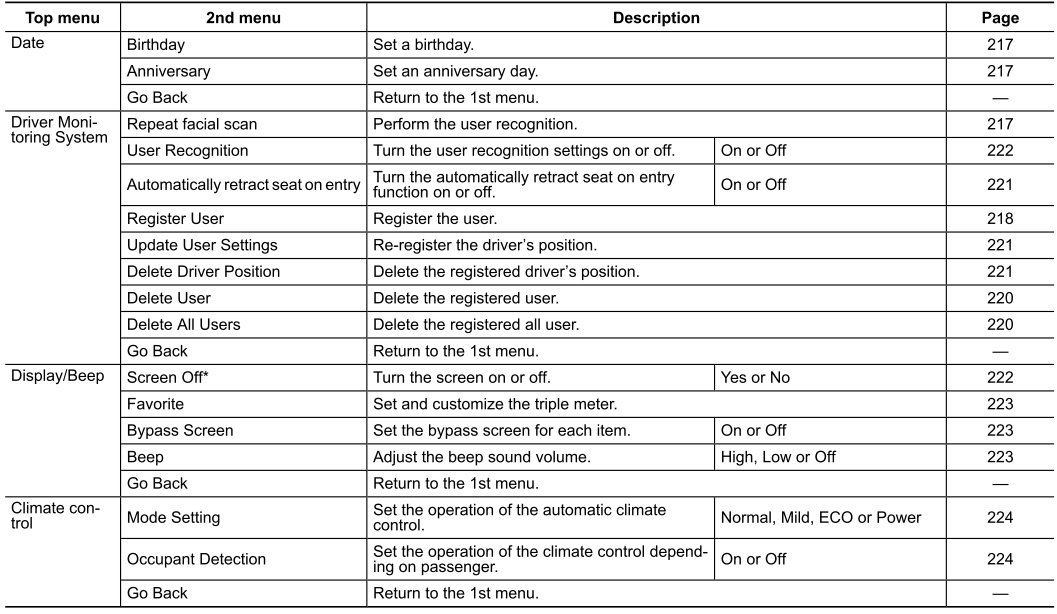

The menu lists are as follows.
Items that can be set when stopped:
*: You can also set this while driving.
Items that can be set while driving:
For safety reasons, we recommend stopping the vehicle in a safe location while setting.
- Date and time settings
- Driver Monitoring System settings
- Climate Control settings
- Maintenance settings
- Initialize
- How to get the source code using the open source
Date and time settings
You can set the date, time and 12h or 24h
format settings.
Current date and time setting
For details about clock setting, refer to
“Clock”.
Birthday setting
If a birthday or anniversary is approaching,
a message will be displayed when the
ignition switch is turned to the “ON”
position...
